Configuring the EURX Indicator for MT4

The Euro Currency Index, or EURX as we refer to it, quantifies and displays strength and weakness of the single currency. As the index rises it suggests strength in the single currency against a basket of currencies. As the index falls this signals weakness in the euro.The Quantum EURX is calculated from a basket of four currencies with each currency having an equal weighting of 25%.

  • US Dollar
  • Japanese Yen
  • British Pound
  • Australian Dollar

The indicator can be used in one of three ways:

  • First, to identify and confirm strength and weakness in major and cross currency euro pairs, helping you get in, stay in and get out
  • Second, as a confirming indicator for the Quantum Currency Strength indicator, providing a perspective against other currencies
  • Finally to provide a relevant and consolidated view of the euro

The indicator plots strength and weakness of the euro as a candlestick chart in a separate indicator window when you attach it to the chart. In addition, there are two configurable simple moving averages to make chart reading easier.

Whether the single currency survives in the longer term, is one for debate. In the meantime, having a quick and easy way to view the euro and its performance against other currencies is key. The Quantum EURX indicator does just that -removing the hard work and presenting a chart which is simple and easy to read, and which provides and instant view of the euro and whether it is rising or falling, second by second and minute by minute. When used in tandem with the Quantum Currency Strength Indicator it is the closest you can come to having your own euro crystal ball!

Applying the Indicator

Open your MT4 platform and in the main menu, select View > Navigator to open the Navigator window which appears at the left hand side of your workspace.

In the Navigator window, expand the Indicators tree by clicking the “+” symbol. Find the Quantum tree and expand it by clicking the “+” once again to reveal the full list of Quantum Trading indicators.

To start using the indicator, you can click and drag QuantumEURX from the Navigator to a chart or you can also double-click QuantumEURX (which will then be applied to the currently selected chart). Doing either one of these will display the Custom Indicator window where you can configure all the various user settings for your Quantum EURX. These options are grouped and can be accessed by selecting the tabs which will be discussed further in the following sections. Once you are done customizing the indicator’s options, click OK to run the indicator.

About tab

Here you can find basic information about the indicator such as its name, description, and version number.

Common tab

Please make sure that the “Allow DLL imports” option is checked/ticked before running the indicator. This is required by all Quantum indicators to properly communicate with its accompanying DLL file. Alternatively, you can set this option globally by selecting in the main menu, Tools > Options > Expert Advisors tab and checking/ticking the “Allow DLL imports” option. Other than this, please leave other options to their default setting.

Inputs tab

You can configure the indicator by changing its variables listed in this tab. We explain this further shortly, and for each configurable input of the Quantum EURX below.

Dependencies tab

All the files that the indicator uses to run is listed here. You can leave this tab as it is.

Colors tab

All the plots of the Quantum EURX can be configured in this tab. It has five plots, but you only ever need to worry about the first three of these if you wish to customize its look and feel.

  • The first plot is the indicator’s line chart mode. Its default color is chartreuse.
  • The second plot is the indicator’s first moving average line (MA1). Its default color is aqua.
  • The third plot is the indicator’s second moving average line (MA2). Its default color is magenta.

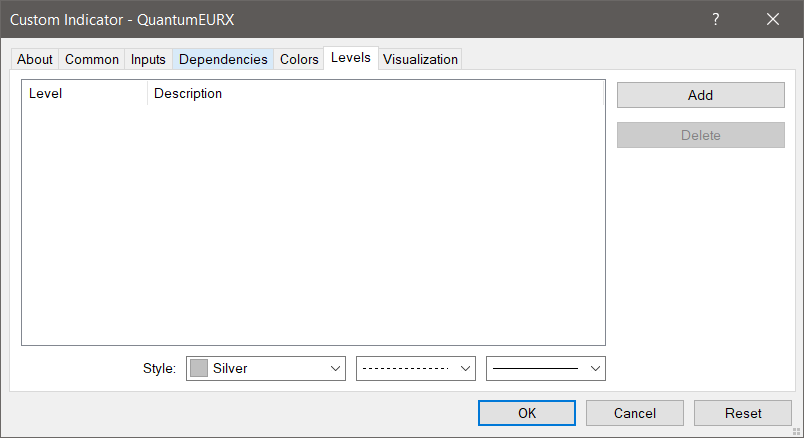

Levels tab

This indicator does not use any Levels so this tab is empty.

Visualization tab

The indicator’s visibility can be toggled on or off in different contexts with the options in this tab.

Configuring the Indicator

Let’s return to the Inputs tab and explain how to customize the settings of your Quantum EURX.

Account Email

When running the Quantum EURX for the first time in your trading account, you need to enter the email you used to register in the Quantum Trading Indicators Enablement System – http://enable.quantumtrading.com/ as part of its verification process. You only need to do this once as the email is stored in the terminal’s global variable cache after it is entered initially. Please make sure that you enter your email correctly and exactly without any extra spaces before and after it. If you made an error, simply fill this field again to update it.

Look Back

This setting defines the number of bars the indicator processes and this is also the number of bars it displays on the chart. It is set to 200 by default.

MA1 Period

This is the first Simple Moving Average with a default setting of 7.

MA2 Period

This is the first Simple Moving Average with a default setting of 14.

Candle Thickness

You can adjust the thickness of the candlesticks by changing the value of this setting.

Bullish Candle Color

This setting allows you to change the color of the bullish candlesticks. Its default color is dodgerblue.

Bearish Candle Color

This setting allows you to change the color of the bearish candlesticks. Its default color is red.

Line Chart Mode

The Quantum EURX indicator attempts to generate its own candlestick chart by default but if this field is set to true, it will use a line chart to display the index.

Line Chart Price Type

When the indicator is set to Line Chart Mode, you can change the price type it uses to plot its line chart using this setting.

Currency Prefix

This is the variable field that you will need to update, if your FX broker delivers your currency pairs with a prefix. As an example this might be a.EUR/USD, in which case you would need to enter the value a. in the Currency Prefix field. If your currency pairs are delivered with a prefix, then you MUST enter this in this field, otherwise your indicator will not work.

Currency Suffix

This is the variable field that you will need to update, if your FX broker delivers your currency pairs with a suffix. As an example this might be EUR/USDm, in which case you would need to enter the value m in the currencySuffix field. If your currency pairs are delivered with a suffix, then you MUST enter this in this field, otherwise your indicator will not work.

Making Adjustments to the User Interface

Expanding the Indicator’s Screen Size

To expand the indicator to full size so that it fills the chart, these are the steps to follow:

  • Hover your mouse pointer over the double horizontal lines marked with the red arrows above
  • A small icon of two parallel lines with the words ‘click drag a border of the window’
  • HOLD down the left click on your mouse, and drag these lines to the top of your chart, and release when done
  • Hover your mouse over the right hand edge of the chart until a double headed arrow appears
  • HOLD down the left click on your mouse, and drag the right hand edge of the chart across to the left and release when done
  • Left click on the chart to make it the active window
  • Left click on the zoom icon below, to expand your Quantum EURX indicator to full size. The zoom function is shown below and is found in the standard toolbar below the top level navigation.

Removing the Indicator from the Chart

Open the chart’s Indicator List window by pressing Ctrl+I. You can also right-click the chart and select Indicator List from the context menu.

Select QuantumEURX and click the Delete button then click the Close button.
